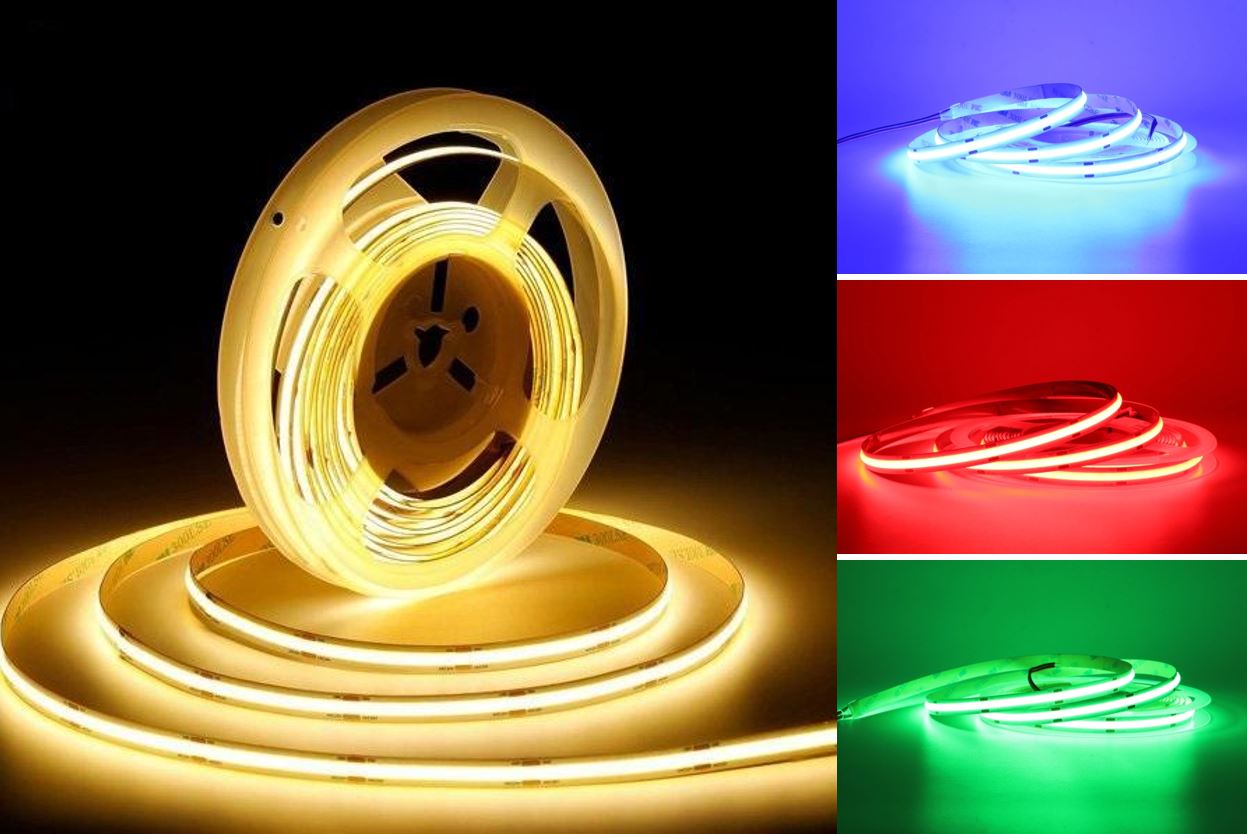

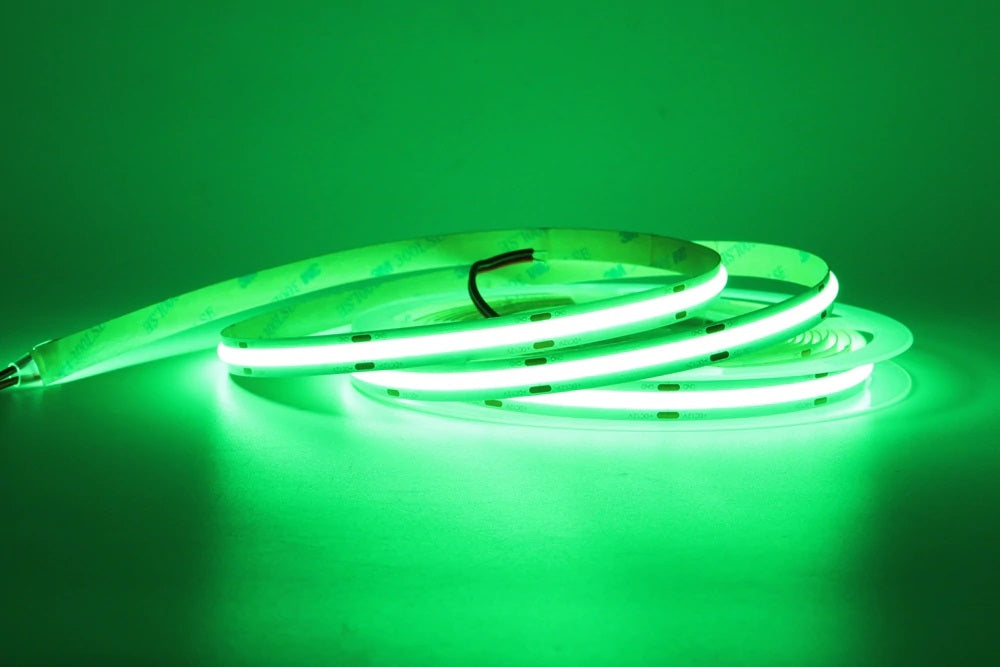

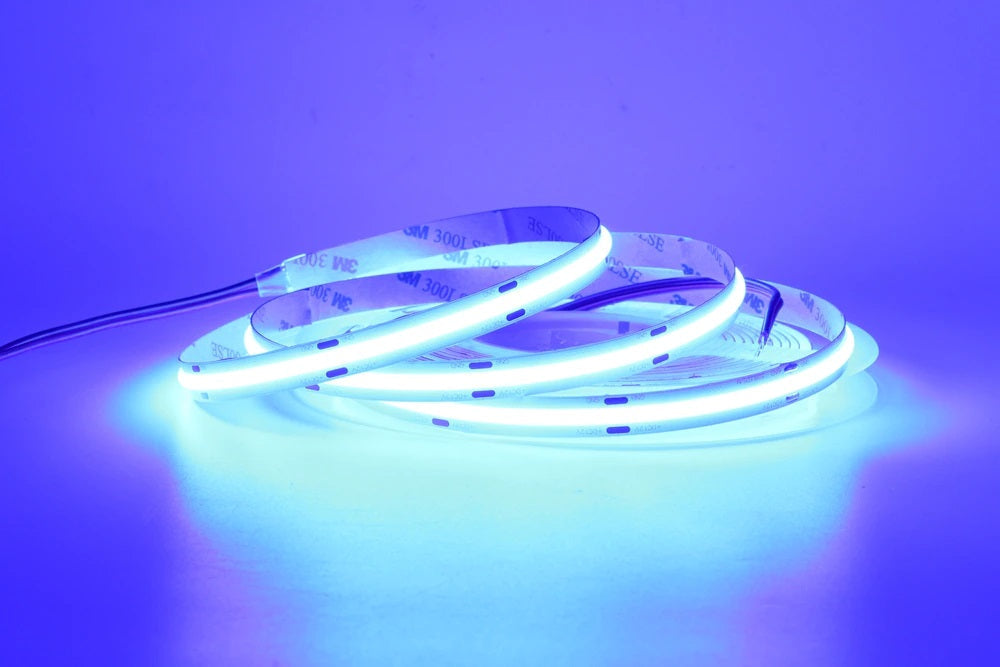

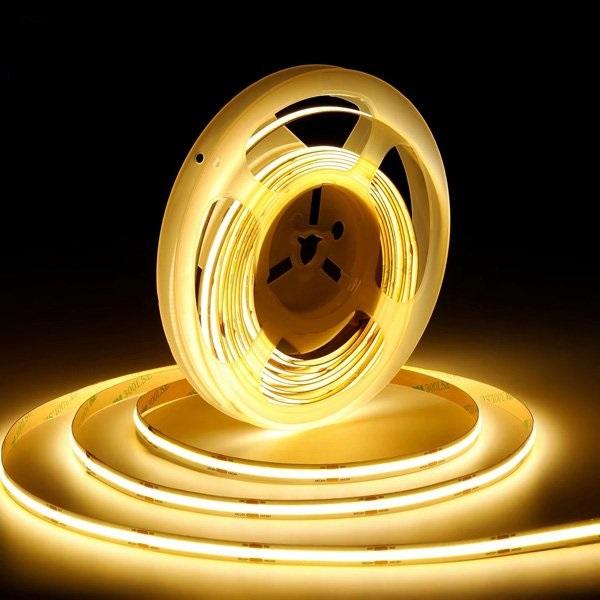

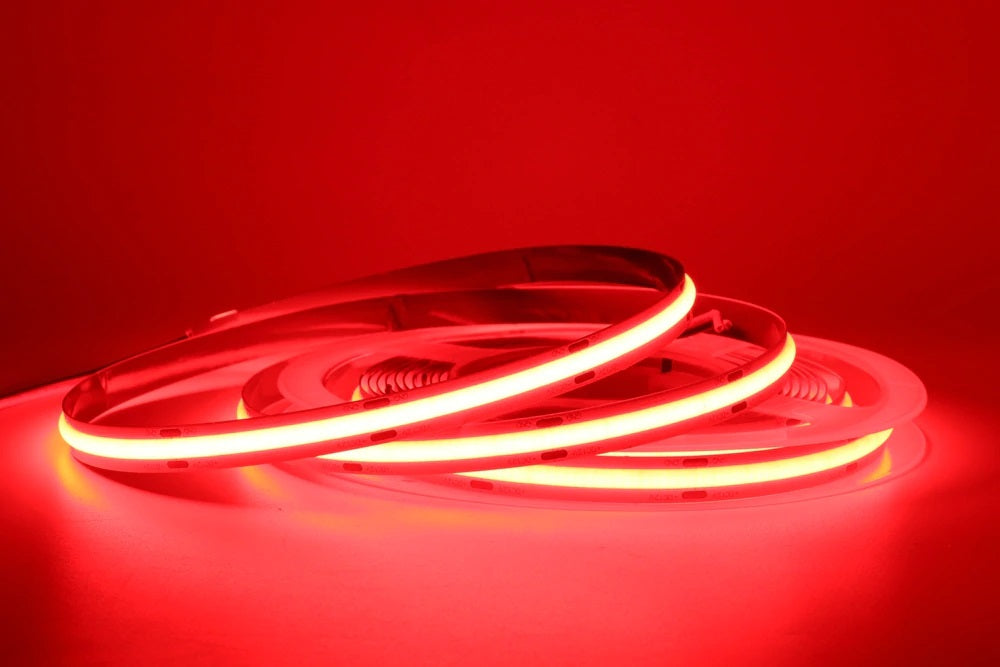

LED solid light strip - 12V 480 led/m x 5m
LED solid light strip - 12V 480 led/m x 5m
Couldn't load pickup availability
Brand new high quality LED strip sold per meter, amazing looking effect as no diffuser required! Superior to other light strips with the solid light effect.
We supply 5m continuous length with cable soldered on both ends.
Requires 12V power supply not included.
COB LED Strip Specifications:
| Product Name: | COB LED Strip Light |
| Model: | ADW-COB12VX-CCT |
| LED Light Source: | COB |
| LED QTY/M: | 480 |
| Power: | 9-11W/m |
| Input Voltage: | 12V |

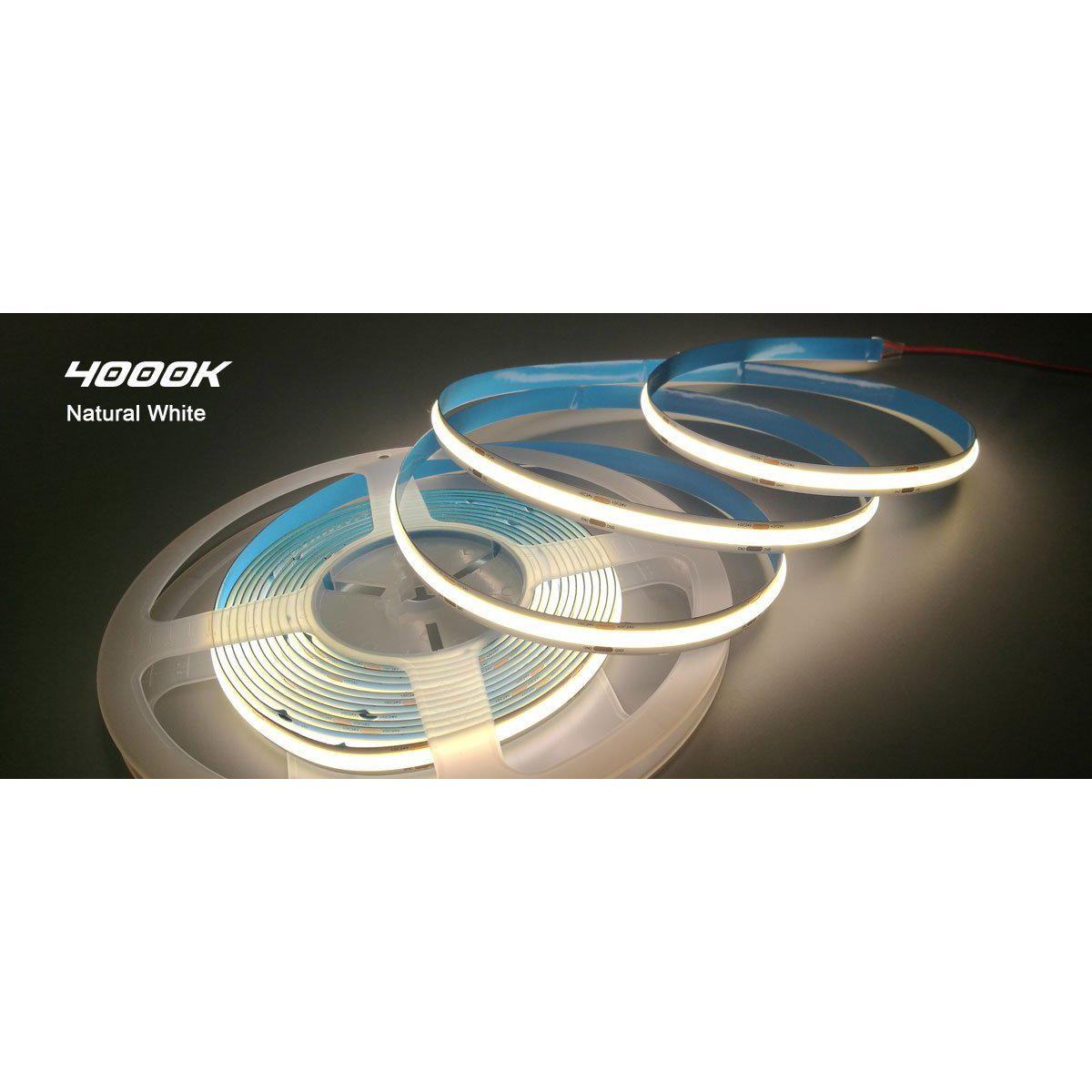

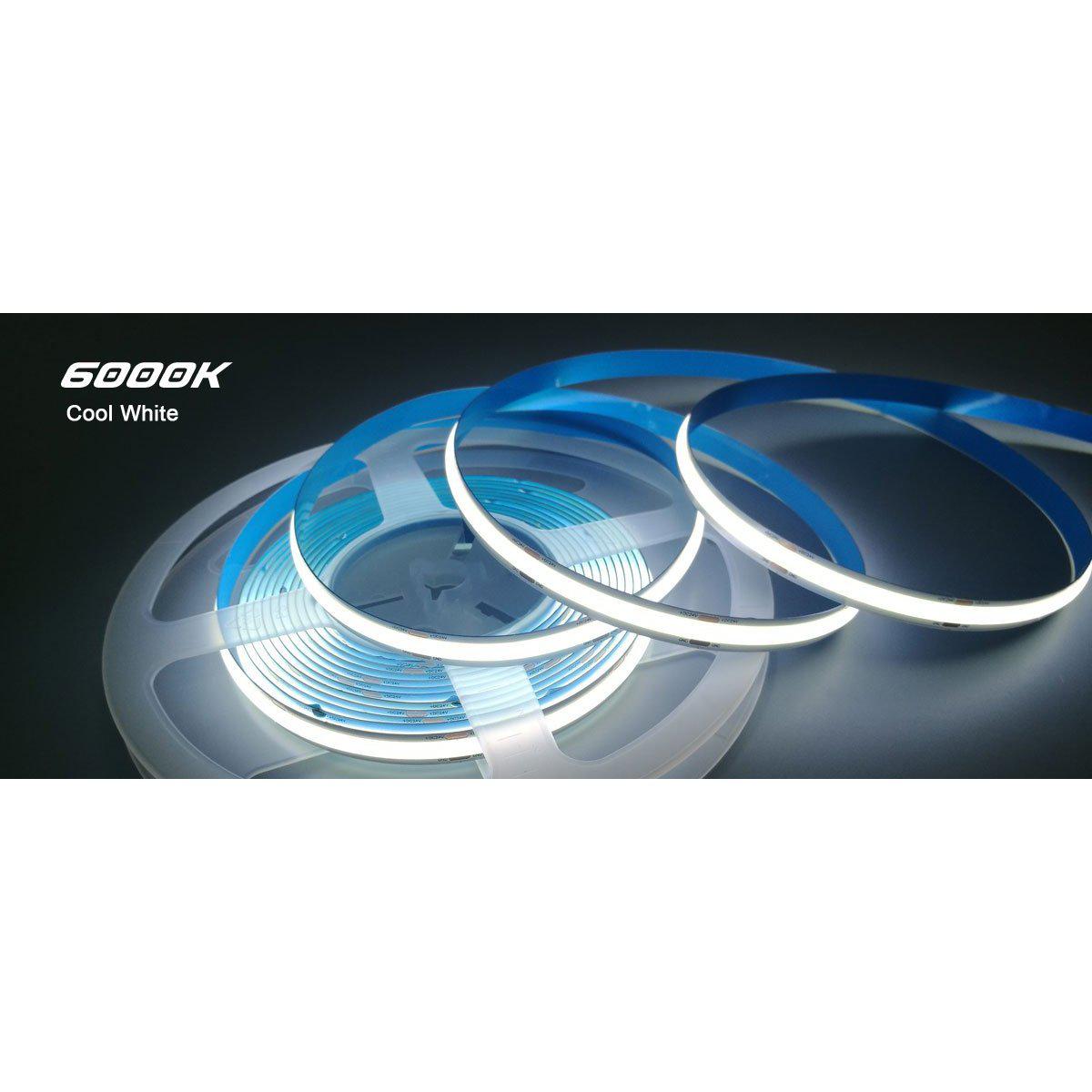

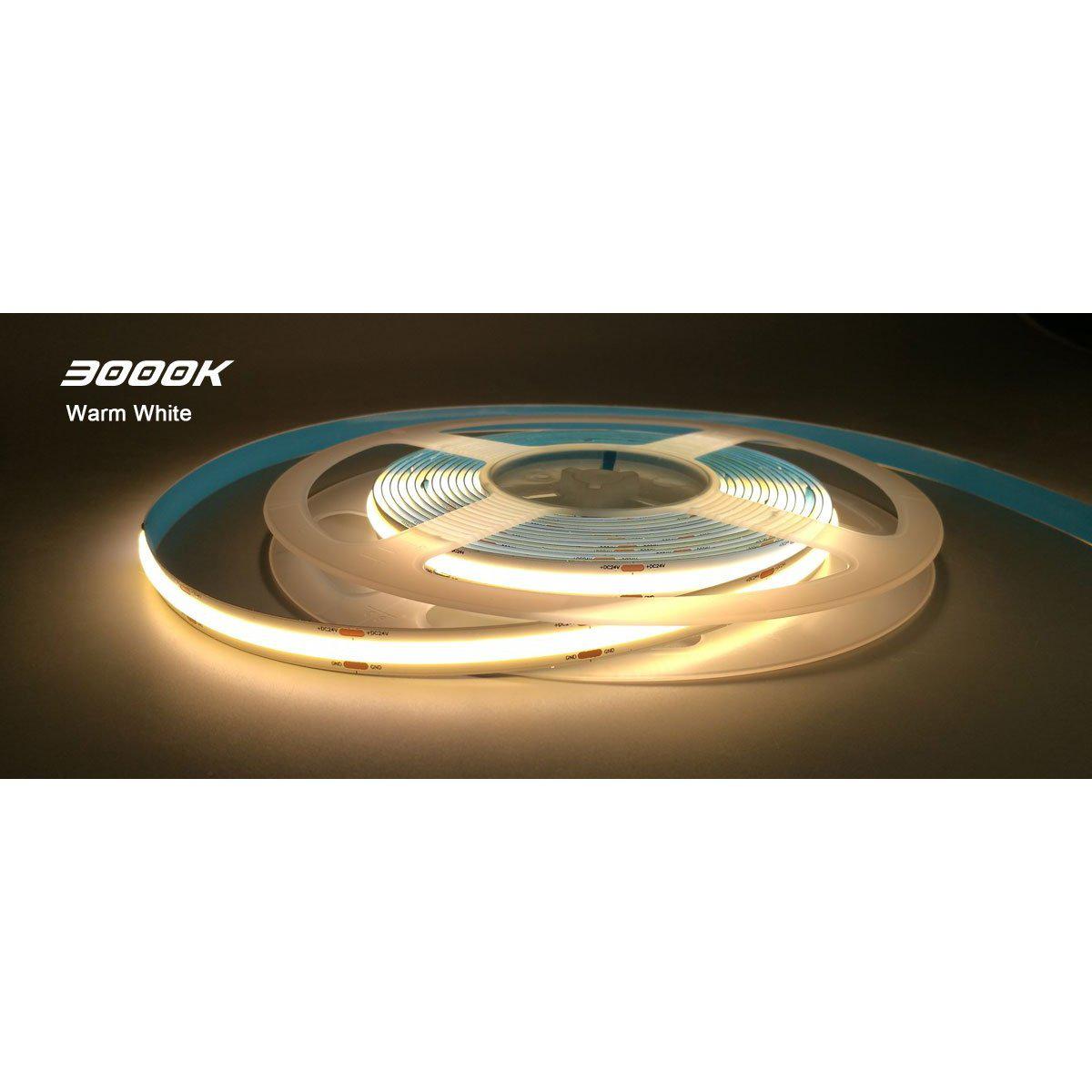

| CCT: | 2900-3100K, 4000-4500K, 6000-6500K |
| CRI: | >80, >90 |
| LM/W: | 80-120LM/W |
| Lumen Output/Meter: | 420LM~1680LM |
| PCB Thickness: | 2oz |
| PCB Color: | White |

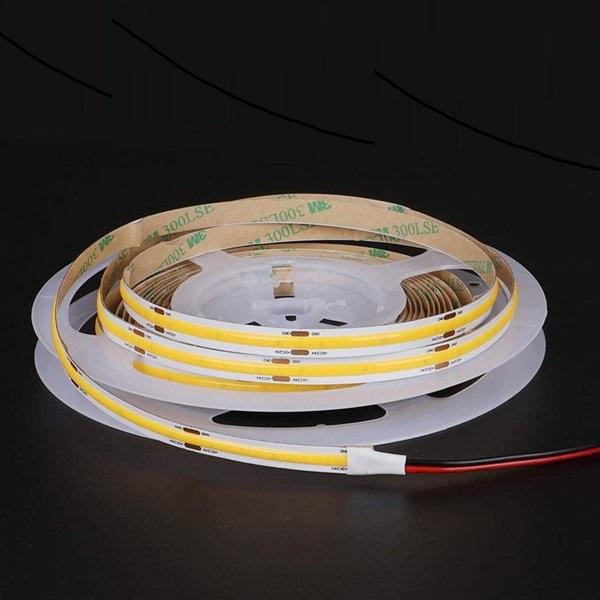

| Tape: | 3M 300LSE tape on the back |
| Length per reel: | 5M |
| Standard Connector: | 20AWG red/black cable on the end |
| Length of Cuttable: | 50mm |
| PCB width: | 8mm |
| LED Strip Dimension: | (Width)*1.6mm(Height)*Length |
| Length: | 5000mm (16.4ft) per roll |
| Length of Connection Cable: | 150mm length |
| LED Beam Angle: | 180° |
| Work Temperature: | -20~60° |
| Working Humidity: | 40%-70%RH |
| Working Lifetime: | 30,000+ hours |
| Warranty: | 3 Years |

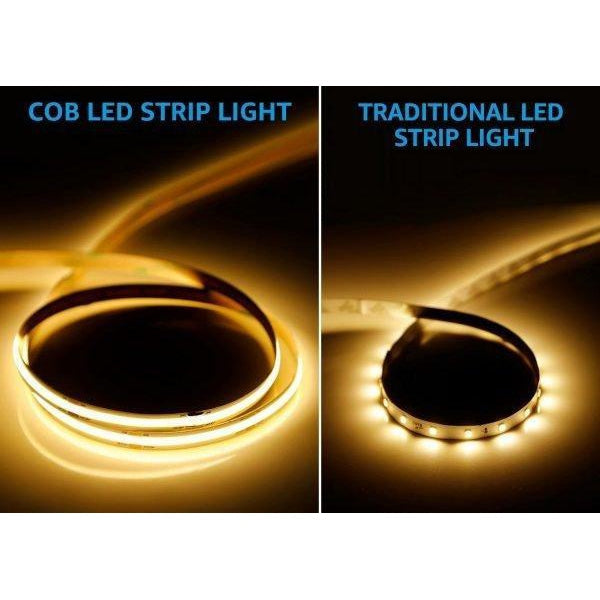

What’s the difference between COB LED and SMD LED?
The full name of COB is the Chip On Board: directly package the chip on the circuit board. See the following picture:

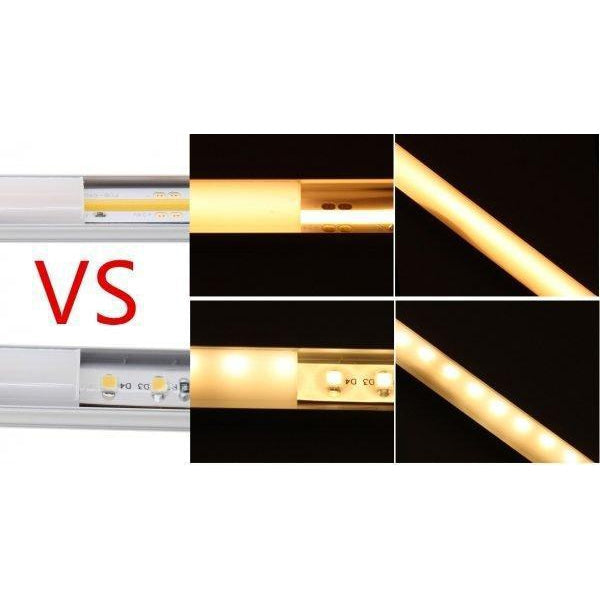

Superior to typical LED strips

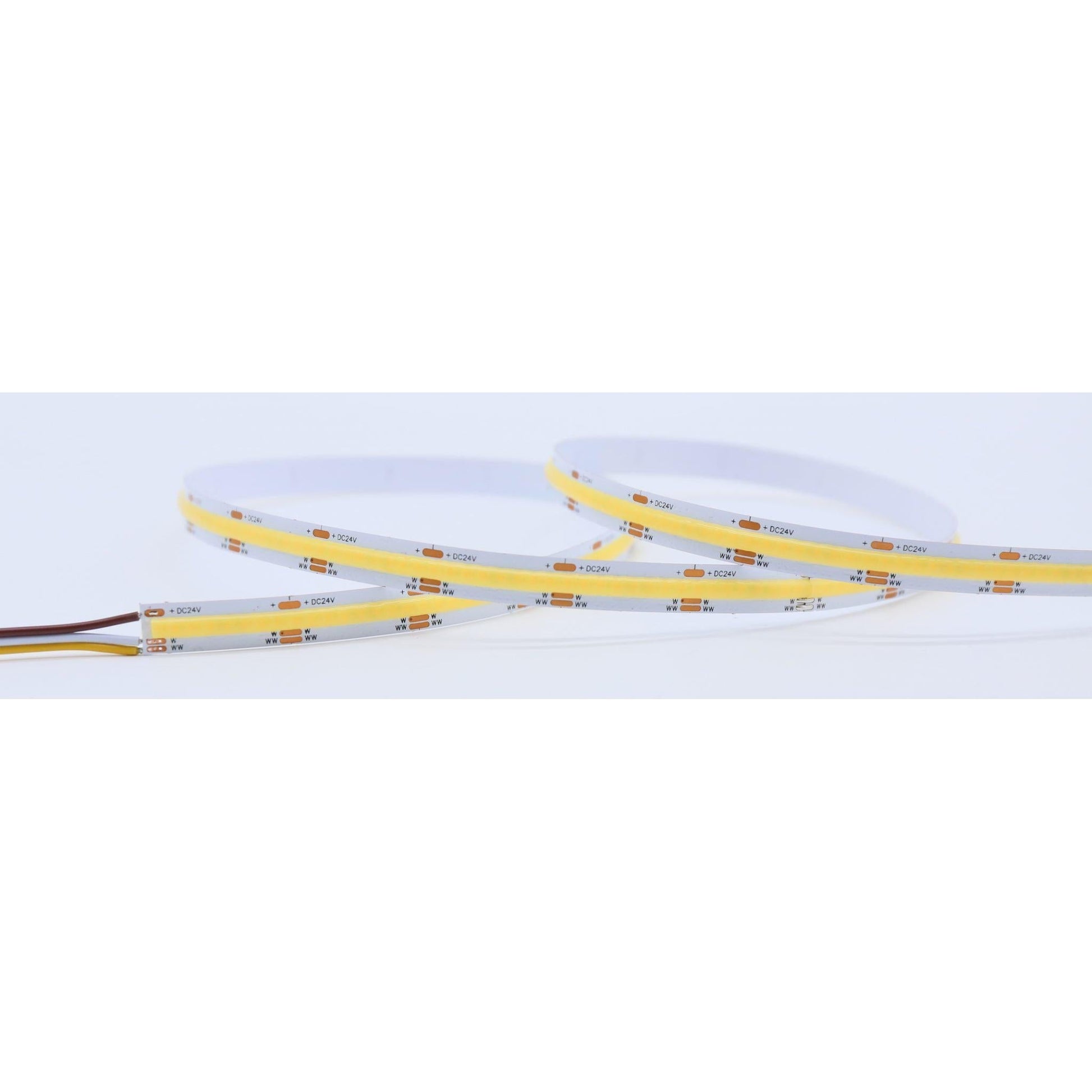

COB LED Strip, 480leds/m DC12V, Length of Cuttable: 50mm, PCB Width: 5mm (8mm, 10mm for optional)
